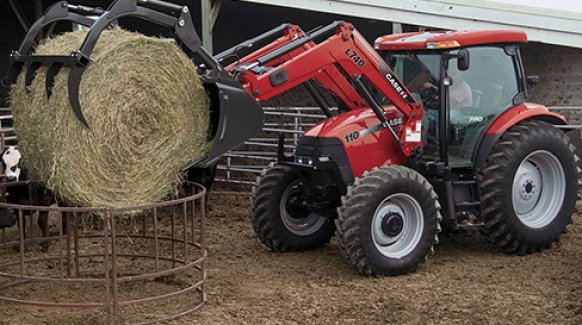

Case IH Products Maxxum 110 MultiController (PRIOR MODEL)

Double tap to zoom



Features

  • Power and Productivity

    • More horsepower when you need it for rough spots and tough jobs
    • Better engine performance and fuel economy
    • Meets today's emissions standards
    • Power Boost to handle tough conditions for power and productivity.

  • Intuitive Innovation

    Case IH design engineers work with real tractor users to innovate the new ideas we include in every tractor we make.

    Includes features like:

    • The exclusive Turn Assist option to improve loader productivity
    • A convenient roof hatch for better visibility
  • Maximum Uptime

    • Case IH design technology provides long-term durability and outstanding fuel efficiency for tractors that start out strong and keep running strong over the long haul.
    • Ground-level maintenance access makes checking fluid and filters a snap.
    • 600-hour oil and filter change intervals keep you up and running more hours per season, season after season.
  • Operator Environment

    • Offers better comfort, better visibility and better control
    • In the Maxxum MultiController series, the ergonomic Multi-Control Armrest makes every move count.
    • Case IH cab suspension provides a smooth, comfortable ride in the field or out on the road.

Specifications

Make Case IH
Model Maxxum 110 MultiController (2012)
Engine Performance
Advertised Engine Power, Rated, hp (kW) 110 (81)
Maximum Engine Power, hp (kW) 143 (105)
Rated Engine Speed, rpm 2200
Power Boost, hp (kW) 33 (24)
Fuel Tank capacity, gal (L) 46.2 (175)
Diesel Exhaust Fluid (DEF) tank capacity, gal (L) 9.8 (37)
PTO Performance
PTO Horsepower, Basic / Optional Transmission, hp (kW) 90 (67)
PTO Speeds, rpm 540 / 1000
PTO operational Type (Independent; Live; Continuous) Independent
Basic Engine
Engine Make Case IH FPT
Engine Model 4.5 L
Number of Cylinders 4
Displacement, cu in (L) 273 (4.5)
Engine Bore, in (mm) 4.095 (104)
Engine Stroke, in (mm) 5.20 (132)
Block Design, Replaceable Liners Parent bore
Aspiration, Turbocharged or Naturally Aspirated Turbocharged w/ Air-to-Air Intercooler
Fuel System
Fuel System Description High Pressure Common Rail
Fuel System Control, Electronic or Mechanical Electronic
Fuel Injection to combustion chamber, Direct or Indirect Direct
Emission and Exhaust Treatment
Emission Level, US EPA Tier Tier 4A (Interim)
Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF) SCR w/ DEF
Exhaust Gas Recirculation (EGR) No
Diesel Oxidation Catalyst (DOC) No
Diesel Particulate Filter (DPF) No
Exhaust Pipe, Vertical stack or Horizontal Vertical stack
Cooling System
Fan Drive Type Viscous
Electrical System
System Rating, Volts 12
Alternator Rating, Amps 120 std; 150 opt
Basic Transmission Configuration
Manufacturer's Description 16F / 16R Semi Powershift
Transmission Type Semi Powershift
Number of Forward / Reverse Speeds 16F / 16R
Maximum Speed Forward, mph (kph) 25 (40)
Creeper Range Available Optional hydraulic controlled
Shuttle (Forward-Reverse) Available Standard
Optional Transmission 1
Manufacturer's Description 17F / 16R Semi Powershift (25 mph)
Transmission Type Semi Powershift
Number of Forward / Reverse Speeds 17F /16R
Optional Transmission 2
Manufacturer's Description 17F / 16R Semi Powershift (30 mph)
Transmission Type Semi Powershift
Number of Forward / Reverse Speeds 17F /16R
Wheel or Track Configuration
Drive Wheels or Tracks; 2WD, 4WD, 2WD / 4WD, 2 Tracks or 4 Tracks 4WD
Steering Configuration: Front Steer, Frame Articulated, or Track-type Steer Front Steer
Rear Axle Assembly
Final Drive Location and Description Planetary / Inboard
Axle Output End, Flange or Bar Flange std; Bar opt.
Axle Bar Diameter, in (mm) 3.625 (92)
Front Axle
Suspended Front Axle Available Optional
Brakes
Service Brake Type Wet disc
Hydraulic System
Hydraulic System Type Pressure Flow Compensated
Main Hydraulic Pump Type Variable Displacement
Implement Pump Flow, gpm (Lpm) 26.4 (100)
Optional Pump Flow, gpm (Lpm) No option
Number of Standard Remote Valves 3 std; 4 opt
3-Point Hitch Features
3-Point Hitch Category Category 2
Optional Hitch Category Category 2 / 3N
Draft Sensing or Lift Control Electronic, lower link pins
Draft Link Ends Adjustable Yes
3-Point Hitch Lift Capacity
Standard Lift Capacity 24 Inches behind pin, lb (kg) 6,900 (3130) OECD
Optional Lift Capacity 24 Inches behind pin, lb (kg) 7,700 (3492) OECD
Standard Lift Capacity at lift pin, lb (kg) np
Optional Lift Capacity at lift pin, lb (kg) np
Drawbar
Drawbar Description Category 3, Swinging
Wheelbase / Trackbase
Wheelbase, 2WD, in (mm) No 2WD
Wheelbase/Trackbase, MFD/4WD or Track, in (mm) 94 (2387) MFD; 96 (2439) Suspended
Length
Length, 2WD, incl. Hitch/Drawbar, in (mm) No 2WD
Length, MFD/4WD or track, incl. Hitch/Drawbar, in (mm) 165 (4182) MFD; 167 (4233) Suspended
Vertical Dimensions
Height to Top of Cab, in (mm) 114 (2900)
Height to Top of ROPS raised, in (mm) No open ROPS
Width w/Tires or Tracks
Overall Width, with standard wheels or tracks, in(Mm) 98 (2489) Bar axle ends
Weight (w/Tires or Tracks)
Weight, 2WD w/ROPS, lb (kg) No 2WD
Weight, MFD/4WD w/ROPS, lb (kg) No open ROPS
Weight, 2WD w/Cab, lb (kg) No 2WD
Weight, MFD/4WD or Tracks w/Cab, without ballast, lb (kg) 11,300 (5125)
Weight, Total allowable, w/maximum ballast, lb (kg) 19,841 (9000)
Tire / Track Size
Front Tire Size, 2WD No 2WD
Front Tire Size orTrack Width, MFD/4WD or Track 380/85 (14.9) R28 R1W
Rear Tire Size or Track Width 460/85 (18.4) R38 R1W
Sales Literature
Literature Number CIH08011001
Literature Date 08/01/2011
Operators Manual
Operators Manual Number --
Operators Manual Date --
Product Manual
Product Manual Number TA-1307-12
Product Manual Date 03/01/2012
Entry Dates
Manufacturing Status, Current or Archive Current
First Entry Date 10/01/2011
Revision Date 04/01/2012
