Case IH Products True-Tandem™ 335 Barracuda

Double tap to zoom



Features

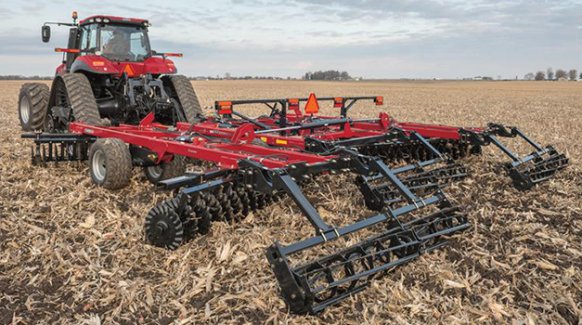

True-Tandem 335 Barracuda
Setting a new standard for aggressive crop residue and soil management, the True-Tandem 335 Barracuda effectively sizes and incorporates even the most stubborn crop residue to leave behind a blacker surface finish than other vertical tillage tools. Its rugged design is built for reliability at high speeds and the aggressive 22-inch serrated blades cut residue up to 4 inches deep to break up hard, dry soils for increased nutrient cycling.


Agronomic Design™: Cut, Size And Bury More Residue
Slice through tough residue, uproot root balls and level out the soil to create the best possible seedbed for your next growing season. Our vertical tillage lineup is built on proven Agronomic Design™ principles with industry-exclusive blades, so you can more effectively manage soil and residue. This patented system moves material up, over and out to stratify soil particles and increase aeration for improved soil tilth and seedbed conditioning.

Crop Residue Management

  • Control residue size and distribution to promote faster breakdown and nutrient cycling
  • Ultimate vertical tillage lineup to manage residue from a multitude of crops
  • The TigerPaw™ Crumbler® puts the final touches on the seedbed
  • Precise depth adjustment allows for greater control over soil residue cover at planting to fit a wide range of soil types, topographies and management objectives



Soil Tilth

  • Break through crusty, sealed-over soils to achieve the proper balance of minerals, air and water
  • The concave, wavy blade design sends soil and residue up, over and out
  • Promote a better seedbed finish without the excessive compaction typical of heavier disks
  • Helps reduce residue hair pinning, resulting in better seed to soil contact and stand establishment



Seedbed Conditioning

  • Put the finishing touches on fields by sizing clods and increasing the soil’s contact with residue for maximum decomposition
  • Provide a uniform seedbed depth and temperature, contributing to early, even plant emergence



Durable True-Tandem Frame
Improve balance and stability in the field with the True-Tandem frame design. The combination of mirror-matched gangs and a rugged, low-maintenance pull-through frame eliminate drift and accommodate higher ground speeds compared with the traditional double-offset frame. LED lights and a high-quality powder coat paint finish keep you in the field longer and your equipment looking good for years to come.

Mainframe & Wings

  • Provides exceptional center of gravity and balance
  • Designed with gusset plates to maximize strength and stress distribution
  • Delivers more uniform weight per blade
  • Increased length over competitive equipment improves overall balance and fore and aft leveling
  • Overlapping weld design and welded cylinders improved durability while reducing maintenance and the chance of leaking



Greaseless Bearings

  • Featured on wing pivots, rockshafts and the TigerPaw Crumbler
  • Reduces routine maintenance, keeping you in the field longer



Durable Design Attributes

  • LED lights are brighter and longer lasting than incandescent lamps
  • The Class 3 powder coat paint finish retains color longer and is more scratch resistant



Level the Growing Field
Work the soil you want to work. The True-Tandem vertical tillage lineup engages soil to your intended depth without disrupting soil density below the operating depth. It’s a system that’s proven to provide more consistency, even as soil types change across the field. And thanks to an intuitive depth adjustment system, you can easily adjust depth control and leveling to meet the needs of your conditions and fields.

Single-Point Hydraulic Depth Control

  • Easily adjusts operating depth with a single hand crank conveniently located at the front of the machine
  • Helps adjust to adverse conditions, such as wet, muddy soil
  • The system holds a constant blade operating depth to provide a uniform seedbed depth temperature, contributing to early, even plant emergence



Fore & Aft Leveling

  • View the gauge from the cab to easily return to your pre-adjusted position

Specifications

Model True Tandem 335 Barracuda, Single Fold 3-Section
CONFIGURATION
Fore-aft configuratiion Blade-Blade-Rolling reel
Primary blade type, disk, coulter or turbo Serrated, mdified wave turbo blade
Manufacturer's description of blades Earth Metal Barracuda Blade
Dimensions and Weights
Working width, minimum, ft-in (m) 22' 5" (6.83)
Working width, maximum, ft-in (m) 34' 3" (10.44)
Transport width, minimum, ft-in (m) 14' 6" (4.42)
Transport width, maximum, ft-in (m) 18' 0" (5.49)
Transport height, minimum, ft-in (m) 10' 5" (3.18)
Transport height, maximum, ft-in (m) 13' 7" (4.14)
Weight, minimum, lb (kg) np
Weight, maximum, lb (kg) np
Sizes available, number of widths 5
Blades
Blade diameter, in (mm) 22 (559)
Blade spacing, in (mm) 7.5 (191)
Blade edge profile Chisel-tip blade serrations
Blade concavity Shallow concavity
Blade Mounting and Angles
Blade Mounting, on Gangs or Standards Gangs
Front angle of gang or blades, degrees 18
Rear angle of gang or blades, degrees 18
Rolling Basket, Reel or Chopper
Description, basket, reel or chopper Double Edge Rolling Reel
Rolling Diameter, in (mm) 14 (356)
Bars or blades on circumference Formed double edge on each bar
Harrow
Harrow tooth, spike or coil tine Coil tine optional, for rice areas only
Harrow gangs 3-bar optional, for rice areas only
Tires
Transport tire, largest size 12.5x15 FI up to 380/60 R16.5
Wing tire, largest size 11Lx15, 8 ply or 380/60 R16.5
Tractor Power Recommendations
Power per width of cut, hp/ft (kW/m) 10 to 15 (24 to 37)
Sales Literature
Literature Number CIH01091601
Literature Date 1/1/2016
Secondary Source
Secondary Source Number --
Secondary Source Date --
Status and Entry Dates
Manufacturing status Current
First Entry Date 2/15/2016
Revision Date --
