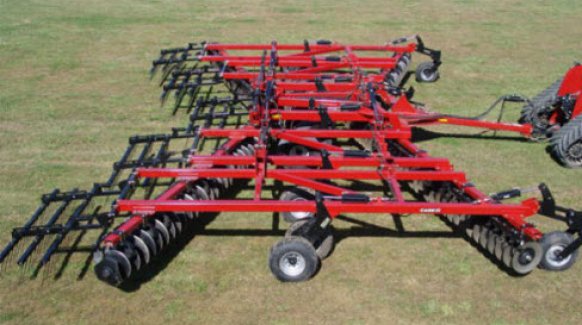

Case IH Products True-Tandem 340 (Previous Model)

Double tap to zoom



Features

True-Tandem Technology

Construction

Gang positions perfectly match each other on both sides of the tongue.

  • Pull forces are uniformly distributed
  • Stability is enhanced
  • Straighter, easier pulling
  • Fewer field adjustments

Blades in the rear back track directly between the cuts of the front gangs.

  • Differs from many competitive, “double-offset” designs
  • Provides true, full-width cuts
  • Leaves no uncut gaps

The 370 model in 42-foot-4-inch and 46-foot-7-inch sizes features a true five-section design.

  • Follows ground contours better and transports narrower than competitor designs
  • Heavier-duty walking tandems throughout; 16.5x16.1 FI (E) on center-section mainframe

True-Tandem™ Advantage

True-Tandem design provides a distinct advantage over traditional double-offset disk harrow.

  • The Case IH even-out, even-in design creates straight pulling and level output — especially on rolling ground

Results

  • Residue sized properly
  • Soil mixed thoroughly
  • Chemicals incorporated more effectively

Earth Metal Blades

All Case IH True-Tandem™ disk harrows are equipped with Earth Metal® blades. Uniquely formed and heat treated, Earth Metal blades offer exceptional endurance and break resistance for longer equipment life. The notched blades aggressively cut residue and vegetation, with excellent cut uniformity.

Durability

Compared to conventional blades under identical conditions, Earth Metal blades:

  • Are 30% stronger
  • Last up to 20% longer
  • Resist stress fractures
  • Feature shallow-concavity design
    • Easier to pull than conical or spherical blades
    • Promote better fuel economy



Resharpening

Case IH Earth Metal blades actually resharpen as they wear.

  • Provides superior cutting performance over an extended blade life
  • Helps prevent down time and maintenance labor
  • Lowers blade replacement cost

The performance of Earth Metal blades actually improves as they are used, while conventional blades lose their sharpness with wear.

Crimped Center Blades

Case IH True-Tandem 340 and 370 feature flat spools:

  • Crimped-center blades with matching flat faces are mounted more securely and are less susceptible to damage
    • Competitive blades are curved at the center, creating spacing issues and movement, which reduces blade strength and makes them prone to wear and tear
  • The case-nodular-style spool from Case IH has greater density for more clearance and better residue flow
    • Competitive welded tubes and spools create a weaker gang, and tube-style gangs have less clearance, which creates reduced residue flow




Harrow Options

3-Bar Coil Tine Harrow

The Case IH 3-bar coil tine features:

  • Excellent leveling and residue flow
  • Adjustable tine angle and down-pressure

3-Bar Spike Harrow

The Case IH 3-bar spike, mounted harrow is ideal for:

  • Optimum clod sizing
  • Producing a better finish in clay soil

Specifications

Make Case IH
Model True-Tandem 340
Disk harrow type, Tandem or Offset Tandem
Folding (Multi-Section) or Non-Folding (Single Frame) Folding
Dimensions and Weights
Working width, minimum,ft-in (m) 18' 8" (5.7)
Working width, maximum, ft-in (m) 34' 1" (10.4)
Transport width, minimum, ft-in (m) 12' 7" (3.8)
Transport width, maximum, ft-in (m) 17' 10" (5.4)
Transport height, minimum, ft-in (m) 9' 10" (3.0)
Transport height, maximum, ft-in (m) 13' 9" (4.2)
Total weight, minimum, lb (kg) 7,982 (3621)
Total weight, maximum, lb (kg) 15,045 (6824)
Sizes available, number of widths 6
Disk Blades
Disk blade spacing, in (mm) 7.5 or 9 (191 or 229)
Disk blade diameter, in (mm) 20 or 22 (508 or 559)
Disk blade thickness, in (mm) 0.177, 0.197 or 0.256 (4.5, 5.0 or 6.5)
Blade edge profile Solid
Optional blade edge profile Notched 22"
Blade concavity Standard concavity
Disk Gang Mounting and Angles
Gang mounting to frame Rigid or C-Spring Cushion
Frame left to right flexibility, rigid or flexible Flexible
Front gang angle, degrees 18
Rear gang angle, degrees 18
Disk Gang Components
Disk bearings Regreasable, triple lip sealed
Gang arbor bolts, in (mm) 1.5 (38) round
Disk spool description, in (mm) 4.5 (114) Nodular iron
Disk blade scraper, type Rigid arm or flex arm
Wheels and Tires
Transport wheel mounting Dual or walking tandem
Transport tires 12.5L x 15Fl
Optional transport tires No option
Wing wheel mounting Single, dual or walking tandem
Wing tires 11L x 15 8PR, or 12.5L x 15
Hitch
Hookup to tractor, mounted or pull-type Pull-type
Depth and Level Adjustment
Typical operating depth, in (mm) 2 - 4 (51 - 102)
Depth control Single point hydraulic, crank adjust
Fore/aft leveling Turnbuckle std / Hydraulic opt
Tractor Power Requirements
Required power, hp/ft (kw/m) 8 to 12 (20 to 29)
Optional Attachments
Rolling basket, reel or chopper Reel basket, flat or round bars
Coil tine harrow 3 bar
Spike tooth harrow 3 bar
Rear hitch Optional
Sales Literature
Literature Number CIH4220802
Literature Date 04/22/2008
Operators or Product Manual
Manual Number 87709477
Manual Date 05/01/2008
Manufacturing status Current
First Entry Date 10/01/2008
Revision Date July, 2011; April, 2012
