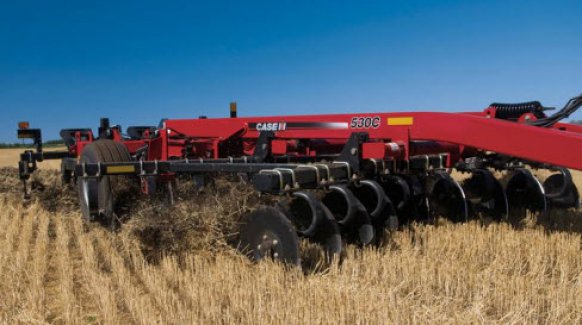

Case IH Products Ecolo-Tiger 530C Disk Ripper

Double tap to zoom



Features

We Have Residue Management Down to a Perfection

Case IH disk rippers help you cut, size and mix crop residue to reduce erosion and increase production capacity. This effective crop residue management allows you to:

  • Increase organic-matter content in the soil
  • Provide a soil/residue mixture that allows moisture to penetrate the subsoil faster
  • Decrease erosion through improved porosity and drainage



BT Residue Tool

With the adoption of Bt hybrids, you need aggressive disk components capable of cutting and mixing the tougher stalks. The Case IH Ecolo-Tiger® 875 tackles Bt residue with:

  • 24-in. (610-mm) individual disks or optional, huge, 26-in. (660-mm) cushion gang® disks
  • 12-in. (304-mm) spacing between gang disks
  • A split-the-middle gang position front to back
  • Reduces stalk size for improved flow and better mixing



Earth Metal Blades

The Ecolo-Tiger® 530C, 730C and 875 are fitted with Earth Metal® blades, which feature:

  • Shallow concavity
  • A crimped center
  • A 24-in. (610-mm) diameter
  • Patented index position relative to the shanks



Conser-Till Unique Features

The Case IH Conser-Till® 690 mulch-till ripper manages crop residue with the industry’s shallowest-concavity disk blades in the front of the machine. This unique design offers:

  • Superior soil penetration
  • Excellent residue cutting and flow without throwing soil beyond the machine
  • Erosion-stopping residue stays on top of the soil

The 12-in. (304-mm) spacing and 6-in. (152-mm)-diameter, slim-center cast spools allow for consistent output in the heaviest residue and soil conditions.



50/50 Is Our Idea of Ideal Soil Composition

Ideal soil composition — known as soil tilth — is 50 percent soil and 50 percent pore space, with water and air equally distributed within the pore space. Soil compaction eliminates this needed pore space and is a common yield-robbing culprit. It can be caused by:

  • Numerous passes of heavy equipment
  • Planting early in wet soil
  • The hydraulic effect of heavy rains
  • Repetitive conventional/traditional tillage at the same depth
  • Varying soil textures throughout a field
  • Lack of crop rotation



Controlling Compaction

Proper primary tillage using a Case IH disk ripper effectively fractures compaction to:

  • Increase soil tilth
  • Allow vigorous root development
  • Promote better stands and higher-yielding plants
  • Warm soils faster and more evenly for earlier spring planting
  • Increase water absorption
  • Reduce ponding



Patented Tiger Points

Patented Case IH Tiger® points, featured on all Case IH disk rippers, have wings that extend downward, rearward and outward.



This revolutionary design creates a “lift, twist and roll” action that:

  • Shatters compaction
  • Relocates soil particles
  • Creates an open, mellow, healthier soil with excellent pore space and distribution
  • Allows for maximum soil tilth



Optional Lead Shanks

The Case IH Ecolo-Tiger® 530C and 730C disk rippers can be fitted with optional lead shanks to prefracture the soil ahead of the main ripping shanks. The addition of this option:

  • Enhances tillage
  • Reduces clod size

Specifications

Make Case IH
Model Ecolo-tiger 530C
CONFIGURATION
Fore-aft configuratiion Disk-Disk-Shanks-Disk
Primary blade type, disk or coulter Disk
Manufacturer's description of machine Disk ripper
DIMENSIONS AND WEIGHT
Working width, ft in (m) 12' 6" (3.8)
Transport width, ft in (m) 14' 8" (4.5)
Overall length, ft in (m) 26' 8" (8.1)
Total weight, lb (kg) 11,600 (5262)
DISK, FORWARD OF SHANKS
Disk blade diameter, in (mm) 24 (610)
Disk blade thickness , in (mm) 0.25 (6.4)
Disk blade spacing , in (mm) 7.5 (190) Effective; 15 (381) on gang
Disk mounting, individual or gang Gang
First disk angle or gang angle, degrees 18
Second disk angle gang angle, degrees 18
Disk operating depth, maximum, in (mm) 4 (102)
Disk depth adjustment Independent hydraulic
SHANKS
Number of main shanks 5
Shank spacing, in (mm) 30 (762)
Shank operating depth, maximum, in (mm) np
Standard shank design Parabolic
Standard shank trip force, lb (kg) 4,800 (2177)
Optional shank design MRD semi-straight
Optional shank trip force, lb (kg) np
Underframe clearance, in (mm) 40 (1016)
Obstruction clearance, trip height, in (mm) 11 (280)
REAR DISK BEHIND SHANKS
Disk blade diameter, rear, in (mm) 18 (457.2)
Disk blade spacing, rear, in (mm) 15 (381)
Disk mounting, rear, individual or gang Gang
Rear disk blade angle or gang angle, degrees np
HITCH AND FRAME
Frame description, Non-folding, Folding, Flex Non-folding
Pull type hitch system, rigid or level lift Rigid
TIRES AND WHEEL MOUNTING
Transport wheel mounting, single, dual, walking tandem Single
Transport Tire size (number of tires) 16.5Lx16.1, 14 ply (2)
TRACTOR POWER REQUIREMENT
Required power, hp (kW) 204 to 279 (152 to 208)
OPTIONAL ATTACHMENTS
Rolling Reel / Basket available, standard or optional No
Spike harrow, available, standard or optional No
Coil tine harrow available, standard or optional No
Rear hitch P/T crumbler hitch optional
Other optional attachment No
SALES LITERATURE
Literature Number CIH4220805
Literature Date 4/22/2008
MANUAL
Manual Number 87680411
Manual Date 4/1/2008
DOCUMENTATION
Manufacturing status Current
First Entry Date 2008
Revision Date 6/1/2008
