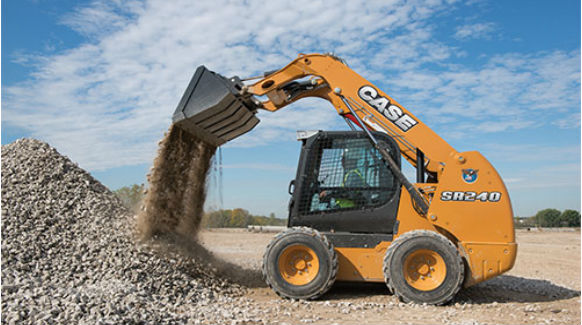

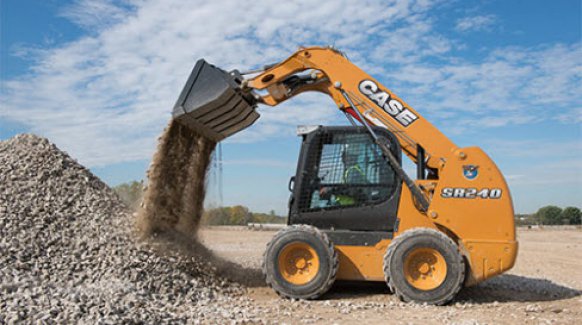

Case IH Products SR240 Skid Steer Loader

Double tap to zoom



Features

Power & Productivity

Muscle to Get the Job Done

CASE skid steer loaders are designed to dominate. Whether you’re up against tough digging, loading, pushing, or grading, these skid steers deliver overall best-in-class performance and breakout force. After all, you deserve a machine that works as hard as you do.

Torque

Need to run your loader longer, stronger, and more profitably? No problem with CASE’s heavy-duty rotational force—get up to 282 lb.·ft. (383 N·m) at 1,400 RPM—more power than ever before.

Breakout Force

With more than more than 9,500 lbs (42.3 kN) of breakout force, CASE skid steer loaders provide you with more strength to lift and move, so you can do more each day.

Optional Auxiliary Hydraulic Packages

CASE skid steer loaders offer three different optional auxiliary hydraulic packages: standard, high-flow and enhanced high-flow. They also offer secondary auxiliary hydraulics for applications requiring multiple hydraulic movements simultaneously.



Undercarriage

Powerstance for Steady Strength


A wheelbase that’s up to 21% longer gives you stability you can feel. The improved weight distribution enables you to lift larger loads and reduces control jerking, back jolting and load-spilling bounce when hauling. Clear curbs easier, retain more material and experience a faster, more comfortable ride.



Operator Environment

Visibility, Comfort and Control

Climb in the cab and you’ll feel the difference. We know your cab is your workplace, so we designed an operating environment that delivers more room, visibility, comfort and control.

Superior Visibility

Easily see what’s all around you with industry leading visibility and standard side lighting, ensuring skid steer operators can maneuver quicker and more confidently at any time – that’s safe operation.

Ultimate Cab Comfort

A comfortable operator is a productive and happy operator. At nearly three feet wide, CASE skid steer loaders offer one of the largest ROPS/FOPS-certified cabs in the industry. It’s fully sealed and pressurized to reduce noise, dust and fumes—and comes with an optional radio and upgraded climate control system.

Effortless Controls

EZ-EH controls: Quickly switch between personalized settings for speed and control customization; program up to nine different presets to recall operator settings for different jobs and different operators - all at the touch of a button. There’s also an intuitive lockout menu and rocker switch to easily alternate between CASE “H” and “ISO” patterns.

Ride Control™: Just push a button to automatically steady the loader arm when traveling at elevated speeds and the machine automatically compensates with greater shock absorption and reduced loader arm bounce, so you can work faster than ever without spilling your load.

Specifications

SPECIFICATIONS
Model SR240
Lift Configuration Radia
Engine FPT F5H FL463 A*F001
Gross Horsepower –hp (kW) 74 (55)
Net Horsepower –hp (kW) 68 (51)
Peak Torque– lb ft (Nm) 232 (314)
Displacement/Cylinders–in³ (L) 207.0 (3.4)
Emissions Certification* Solutions Tier 4 Final (CEGR, DOC, PM Catalyst)
Rated Operating Capacity (ROC) 50%– lb (kg) 2,400 (1 088)
Tipping Load– lb (kg) 4,800 (2 177)
Bucket Cylinder Breakout Force–lb (kN) 8,680 (38.6)
Standard Auxiliary Hydraulics–gpm (L/min) 24.2 (91.5)
High-Flow Auxiliary Hydraulics–gpm (L/min) 37.6 (142.5)
Operating Weight – lb (kg) 7,400 (3 350)
DIMENSIONS
Height to Bucket Hinge Pin 125.1 in (3.18 m)
Dump Height with Low-Profile Bucket** 98.3 in (2.50 m)
Height to Top of ROPS 78.8 in (2.00 m)
Overall Length with Low-Profile Bucket 146.2 in (3.71 m)
Over-the-Tire Width with Spec. Tires 69.6 in (1.77 m)
