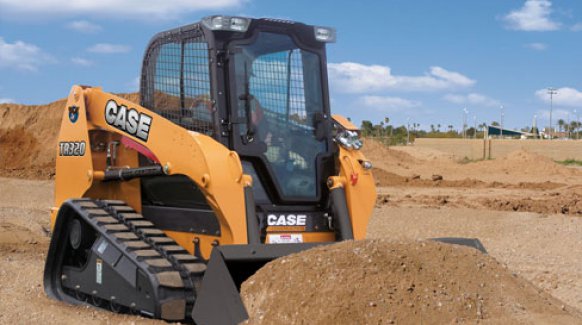

Case IH Products TR320 Compact Track Loader (Canada Only)

Double tap to zoom



Features

Power & Productivity

Muscle to Get the Job Done

CASE compact track loaders are designed to dominate. Whether you’re up against tough digging, loading, pushing, or grading, these mini track loaders can help you conquer just about any job. After all, you deserve a machine that works as hard as you do.

Torque

Need to run your loader longer, stronger, and more profitably? No problem with CASE’s heavy-duty rotational force—get up to 282 lb.·ft. (383 N·m) at 1,400 RPM—more power than ever before.

Breakout Force

With more than more than 8,700 lbs (38.7 kN) of breakout force, CASE compact track loaders provide you with more strength to lift and move, so you can do more each day.

Optional Auxiliary Hydraulic Packages

CASE compact track loaders offer three different optional auxiliary hydraulic packages: standard, high-flow and enhanced high-flow. They also offer secondary auxiliary hydraulics for applications requiring multiple hydraulic movements simultaneously.



Undercarriage

Traction When and Where it's Needed

Our dozer-style undercarriage is engineered to hold fast on steep slopes and take command of muddy or sandy terrain.

  • Rigid track frame with fewer moving parts.
  • More durable and easier to maintain than suspension track systems.
  • New roller and idler technology reduces maintenance costs and increases undercarriage life.
  • Narrow chassis width makes it easy to load and unload on trailers.



Operator Environment

Visibility, Comfort and Control

Climb in the cab and you’ll feel the difference. We know your cab is your workplace, so we designed an operating environment that delivers more room, visibility, comfort and control.

Superior Visibility

Easily see what’s all around you with industry leading visibility and standard side lighting, ensuring operators can maneuver quicker and more confidently at any time – that’s safe operation.

Ultimate Cab Comfort

A comfortable operator is a productive and happy operator. At nearly three feet wide, CASE compact track loaders offer one of the largest ROPS/FOPS-certified cabs in the industry. It’s fully sealed and pressurized to reduce noise, dust and fumes—and comes with an optional radio and upgraded climate control system.

Effortless Controls

EZ-EH controls: Quickly switch between personalized settings for speed and control customization; program up to nine different presets to recall operator settings for different jobs and different operators - all at the touch of a button. There’s also an intuitive lockout menu and rocker switch to easily alternate between CASE “H” and “ISO” patterns.

Ride Control™: Just push a button to automatically steady the loader arm when traveling at elevated speeds and the machine automatically compensates with greater shock absorption and reduced loader arm bounce, so you can work faster than ever without spilling your load.

Specifications

Model TR320
ENGINE
Emission Rating Interim Tier 4
Engine make / model Case 434T / E4
Rated RPM - rpm 2500
Net Power - hp (kW) 84 (63)
Gross Power - hp (kW) 90 (67)
Net Rating Standard SAE J1349
Peak Torque - lbf / ft (Nm) 282 (383)
Number of Cylinder 4
Displacement - Inches³ (ltr) 207 (3.4)
Aspiration Turbo
DRIVE TRAIN
Max Travel Speed Forward - mph (kph) 5.1 (8.2)
Width Over Tracks - inches (mm) 76 (1930)
Track Width - inches (mm) 17.7 (450)
HYDRAULICS
Main Pump Type Gear
Standard Pump Flow - gallons (US) / min (lt/min) 24.2 (92)
Main System Pressure - PSI (bar) 3050 (210)
LOADER ARMS
Linkage Geometry Radial
Rated operating load @ 35% of tipping capacity - lbs (kg) 2240 (1018)
Rated operating load @ 50% of tipping capacity - lbs (kg) 3200 (1451)
Straight Tipping Load - lbs (kg) 6400 (2902)
Bucket Breakout Force - lbf (kN) 8700 (38.7)
Dump Clearance at Full Height Discharge - inches (mm) 102.4 (2602)
Dump Reach (Max. height) - inches (mm) 21.6 (548)
Bucket Rollback at Ground Level - ° 29.7
Bucket Rollback at Max Height - ° 99.7
Loader Controls - std/opt EZ-EH / Mechanical Hand
Drive Controls - std/opt EZ-EH / Mechanical Hand
BUCKET
Bucket Width - inches (mm) 78 (2000)
DIMENSIONS
Length with Bucket Down - inches (mm) 142.2 (3611)
Height to Top of Cab - inches (mm) 80.4 (2043)
Ground Clearance - inches (mm) 9.5 (243)
Loader Controls - std Joystick
Drive Controls - std Hand / Foot Controls
OPERATING WEIGHT
Operating Weight - lbs (kg) 9600 (4355)
SERVICE CAPACITIES
Fuel Tank - gallons (US) (ltr) 25.5 (96.5)
