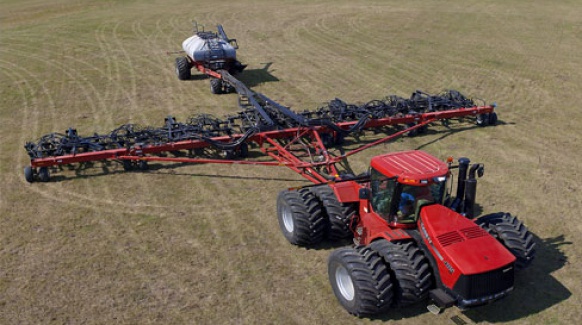

Case IH Products Precision Hoe™ 800

Double tap to zoom



Features

ACCURATE SEED AND FERTILIZER PLACEMENT

The patented parallel link row unit — with double-shoot knife opener and single-shank design — provides exceptional seed and fertilizer placement accuracy and depth control. The Precision Hoe™ 800 combines precise control with rugged reliability for seeding in uneven terrain and tough no-till conditions.

Patented Parallel Linkage

Parallel link maintains opener depth from the top to the bottom of its entire range of motion:

  • 9 in. up and 7 in. down
  • Depth is adjustable in 1/8-in. increments

Retains the angle at which the knife opener engages the ground:

  • Preserves the 1- to 1.5-in. separation between seed and fertilizer bands — ideal for fertilizer availability to seed
  • Preserves consistent distance between the knife and the packing wheel

Adjustable hydraulic control of packing and trip force:

  • Trip force adjusts from 275–550 lbs.
  • Down-pressure/packing force adjusts from 135–215 lbs.

Ultra-Low-Disturbance Opener

Patented, angled double-shoot knife opener works hand-in-hand with parallel linkage to provide:

  • Precise seed and fertilizer depth placement
  • Positive separation of seed and fertilizer bands
  • The ability to handle dry, liquid or anhydrous ammonia fertilizer

Made of tough material:

  • Carbide opener tips for prolonged wear

Single-Shank Design

The unique design delivers both seed and fertilizer on one shank:

  • Uses half the number of shanks vs. competitive models that use two separate shanks to place seed and fertilizer

Advantages of fewer shanks:

  • Improved residue flow
  • Decreased chance of plugging and dragging
  • Ideal for heavier, tougher residue common with new genetics
  • Better field finish

REAR-FOLDING TOOLBAR

Wide working widths and a narrow transport width

The Precision Hoe™ 800 uses a similar patented rearward-folding frame design as the Case IH Flex Hoe 700. This innovative design allows wide working widths while providing industry-leading narrow transport width and height for visibility, stability and safety on the road.

Wide Working Width

Available in three working widths to cover more acres in less time:

  • 50 ft. (15.2 m)
  • 60 ft. (18.3 m)
  • 70 ft. (5 m)

All three working widths are:

  • Available in 10- or 12-in. rows
  • Capable of operating with tow-between and tow-behind air systems

Narrow Transport Width and Height

All three configurations offer:

  • Narrow 17-ft.-8-in. (5.38-m) transport width
  • Short 16 ft.-9-in. (5.03-m) transport height
  • Good visibility during transport

This compact footprint allows for:

  • Operator peace of mind on busy highways
  • Easy inside storage during the off-season

IN-CAB CONTROL

ISO BUS electronic controls

ISOBUS Compliant

Every Precision Hoe™ 800 is equipped with ISO BUS electronic controls so you can monitor and control various drill functions from your in-cab monitor.

If you already have an AFS® Pro 600 color display for your Case IH tractor, you can:

  • Run your Case IH tractor, Precision Hoe 800 drill and Precision Air® air cart from one monitor
  • Control seeding, auto folding and unfolding operations
  • Control and adjust hydraulics, including row-unit trip force and down pressure

Specifications

Make Case IH
Model Precision Hoe 800
Configuration
Seeding Method Precision hoe
Row Spacings, in (mm) 10, 12 (254, 305)
Seed Supply: Air Cart or Integral Tank Air Cart
Type of Frame & Transport Folding Method 3 & 5-section, horizontal rear fold
Machine Dimensions and Weight
Working Width, Minimum, ft-in (m) 50' (15.3)
Working Width, Maximum, ft-in (m) 70' (21.3)
Transport Width, Minimum, ft-in (m) 17' 8" (5.4)
Transport Width, Maximum, ft-in (m) 17' 8" (5.4)
Transport Height, Minimum, ft-in (m) 16' 6" (5.03)
Transport Height, Maximum, ft-in (m) 16' 6" (5.03)
Transport Length, Minimum, ft-in (m) np
Transport Length, Maximum, ft-in (m) np
Number of Furrows, Minimum 50
Number of Furrows, Maximum 84
Basic Weight, Minimum, lb (kg) 27,592 (12542)
Basic Weight, Maximum, lb (kg) 37,985 (17266)
Variants Available 6
Primary Opener Assembly
Opener Type Double pivot toggle trip hoe mtd on parallel arms
Depth Gauging System By press wheel
Opener-Mounted Press Wheel Description 4.8" wide round pneumatic tire
Seeding Depth, Maximum, in (mm) 2 (51)
Down Pressure, Minimum lb (kg) 135 (61)
Down Pressure, Maximum lb (kg) 200 (91)
Trip Load, lb (kg) 275-550 (125-249)
Type of Fertilizer Delivery Double shoot
Frame Mounted Press Wheels
Frame Mtd. Press Wheels - Width range, , in (mm) See opener-mounted press wheel
Frame Mtd. Press Wheels - Wheel / Tire Description See opener-mounted press wheel
Tires and Frame
Center Frame Tire Size; Min, Max 11 x 15FI, 12.5 x 15FI
Wing Frame Tire Size; Min, Max 11 x 15FI, 12.5 x 15FI
Frame Height Control Fixed
Number of Ranks 3
Distance Between Ranks in (mm) 39 (991)
Under Frame Clearance in (mm) 30 (762)
Opener to Road Clearance in (mm) np
Sales Literature
Literature Number CIH6010901
Literature Date 6/1/2009
Manual
Manual Number --
Manual Date --
Manufacturing Status Current
First Entry Date 3/1/2010
Revision Date --
na = Not Applicable, np = Not Published
