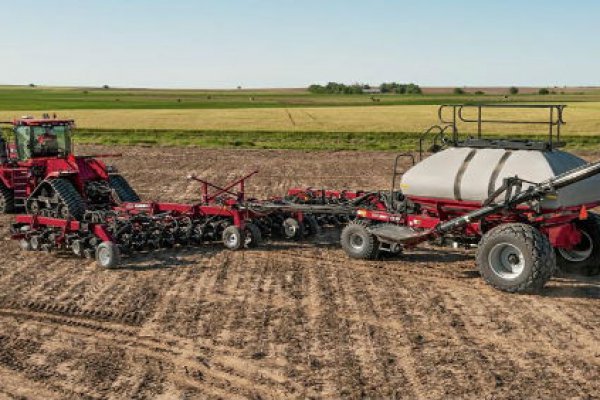

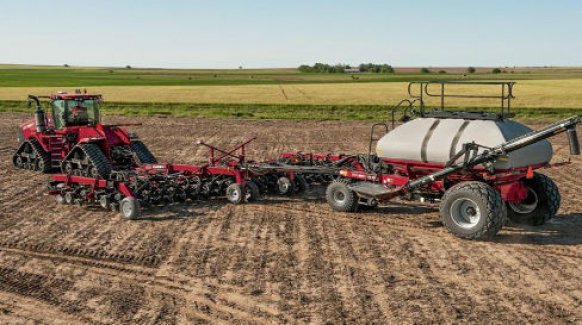

Case IH Products Precision Disk 500

Double tap to zoom



Features

Precision Disk 500 Air Drill Highlights​

  • Tow-between or tow-behind configurations
  • Split front and rear ranks to allow single rank seeding
  • Easily folds for transportability
  • In-Cab down pressure control



Transport & Flotation
Transport

  • The vertical fold design allows for lowest transport height in the industry as well as narrow transport widths
  • The 25 ft & 30 ft Precision Disk Drills also utilize a wing lock for safe transport
  • To fold or unfold the tool, a single remote lever in the tractor is used
  • While transporting or pulling in/out of a field, the ground clearance of the openers is 8.5 in
  • The wide profile of the transport wheels provide the stability to move the disk drill confidently, even at higher roading speeds
  • Maximum transport speed should not exceed 20 mph



Standard Flotation

  • Stubble resistant tires at all locations
  • 12 total wheels
  • Front of mainframe- 12/5L x 15 dual on castoring rigid axles
  • Front and rear of each wing --12.5L x 15 single wheel (front on caster)
  • Rear of mainframe--18L x 16.1 dual wheels on rigid axles



High Flotation

  • Stubble resistant tires at all locations
  • 16 total wheels
  • Front of mainframe--12.5L x 15 dual on castoring walking tandem axles
  • Front and rear of each wing--12.5L x 15 duals on walking beam axles (front on castor)
  • Rear of mainframe 18L x 16.1 dual wheels on walking beam axles


Tow-Behind or Tow-Between, It's Up to You

Front Hitch

  • The front pull hitch is a floating style hitch
  • Allows the disk drill to float up and down, independently from the tractor and hitch
  • Improves ground following and seed depth control because the hitch will not raise or lower the front of the tool when the tractor rides over a hill or an obstacle



Rear Hitch

  • A rear hitch is available to hook up any tow-behind air cart
  • The rear hitch is designed to ensure a tight implement turning radius and follow the tracks created by the tractor during transport
  • Provides enough room to allow the drill frame to be folded into the transport position without disconnecting the air system
  • A rear hitch package is available to provide the needed hydraulic and eletronic power to the Tow-Behind air cart
  • Lights and ISOBUS connection



Hitch Clevis

  • A strong cast Cat IV clevis
  • For secure hitching, this type of hitch requires a 2" hitch pin​​



Rear Hitch Caddy

  • When utilizing a Tow-Between air cart a convenient rear hitch can also be added to the drill to tow other caddies

Specifications

Model Precision Disk 500, 3-Section (2013-Present)
Configuration
Seeding Method No-Till disk, parallel link
Row Spacings, in (mm) 10 (254) std. or 7.5 (191) opt.
Seed Supply, Air Cart or Integral Tank, bu (L) Air Cart
Frame Sections & Transport Folding Method 3-section,single fold vertical
Machine Dimensions and Weight
Working Width, Minimum, ft-in (m) 30' (9.14)
Working Width, Maximum, ft-in (m) 40' (12.19)
Transport Width, Minimum, ft-in (m) 12' (3.65)
Transport Width, Maximum, ft-in (m) 18' 10" (5.73)
Transport Height, Minimum, ft-in (m) 13' 1" (4.0)
Transport Height, Maximum, ft-in (m) 13' 10" (4.21)
Number of Furrows, Minimum 36
Number of Furrows, Maximum 64
Basic Weight, Minimum, lb (kg) 17,500 (7938)
Basic Weight, Maximum, lb (kg) 24,800 (11250)
Variants Available 2 widths, 2 row spacings
Primary Opener Assembly
Opener Type Single 18" (457) coulter, 7 degree angle
Depth Gauging System 4.5" (114) wide gauge wheel
Seeding Depth, Maximum, in (mm) 3.5" (89), 14 increments
Down Pressure, Minimum, lb (kg) 160 (73) per row
Down Pressure, Maximum, lb (kg) 400 (181) per row
Trip Load, lb (kg) Vertical travel; no trip
Fertilizer Delivery np
Press Wheels
Press Wheels Mounted on Opener or to Frame Mounted on opener; three pressure settings
Press Wheel Description 4" (102) wide double edge
Tires and Frame
Center Frame Tire 12.5Lx15 dual front; 18Lx16.1 dual rear
Wing Frame Tire 12.5Lx15 single front and rear std; dual opt.
Number of Frame Ranks 2
Distance Between Ranks, in (mm) 59 (1499)
Sales Literature
Literature Number CIH17110203
Literature Date 2/1/2017
Other Documentation
Document Number PL-3079-12
Document Date 11/1/2012
Status and Entry Dates
Manufacturing Status Current
First Entry Date 11/27/2012
Revision Date 2/13/2013; 1/3/2017; 7/14/2018

-

Model Precision Disk 500, 5-Section (2014-Present)
Configuration
Seeding Method No-Till disk, parallel link
Row Spacings, in (mm) 10 (254) std. or 7.5 (191) opt.
Seed Supply, Air Cart or Integral Tank, bu (L) Air Cart
Frame Sections & Transport Folding Method 5-section, double fold vertical
Machine Dimensions and Weight
Working Width, Minimum, ft-in (m) 50' (15.24)
Working Width, Maximum, ft-in (m) 60' (18.29)
Transport Width, Minimum, ft-in (m) 18' 10" (5.73)
Transport Width, Maximum, ft-in (m) 18' 10" (5.73)
Transport Height, Minimum, ft-in (m) 13' 2" (4.02)
Transport Height, Maximum, ft-in (m) 14' 11" (4.55)
Number of Furrows, Minimum 60
Number of Furrows, Maximum 96
Basic Weight, Minimum, lb (kg) 36,600 (16601)
Basic Weight, Maximum, lb (kg) 45,500 (20369)
Variants Available 2 widths, 2 row spacings
Primary Opener Assembly
Opener Type Single 18" (457) coulter, 7 degree angle
Depth Gauging System 4.5" (114) wide gauge wheel
Seeding Depth, Maximum, in (mm) 3.5" (89), 14 increments
Down Pressure, Minimum, lb (kg) 160 (73) per row
Down Pressure, Maximum, lb (kg) 400 (181) per row
Trip Load, lb (kg) Vertical travel; no trip
Fertilizer Delivery np
Press Wheels
Press Wheels Mounted on Opener or to Frame Mounted on opener; three pressure settings
Press Wheel Description 4" (102) wide double edge
Tires and Frame
Center Frame Tire 16.5x16.1 walking tandem front and rear
Wing Frame Tire 12.5Lx15 single front and rear inner; single outer
Number of Frame Ranks 2
Distance Between Ranks, in (mm) 59 (1499)
Sales Literature
Literature Number CIH17110203
Literature Date 2/1/2017
Other Documentation
Document Number PL-3085-13
Document Date 8/1/2013
Status and Entry Dates
Manufacturing Status Current
First Entry Date 1/3/2017
Revision Date 7/14/2018
