- Combines a rugged row unit with the industry’s most accurate planting technologies
- Quickly adapts to meet unique field conditions
- Consistently accurate – no matter the speed or conditions
- Customized direct from the factory to meet any soil types and cropping practice
- Precision Planting r-ball options to meet your unique planting needs
- Crop protection and fertilizer application options available
Easy Maintenance & Adjustments
- Tool-free crop changes and adjustments on many components
- Simple, accessible T-handle depth adjustment makes changing seeding depth in 1/8-inch increments quick and easy
2140 Early Riser Pivot Fold Planter Delivers Split Row Configurations
Expanding the 2000 series lineup, the new 2140 Early Riser planter adds ultra-narrow row spacing of 15-, 20- and 22-inch with split row configuration options, allowing producers to easily convert between crops. This planter is also designed with excellent ground clearance for unmatched terrain flexibility, a pivot fold transport package so producers can easily move from field to field and navigate tight field entrances, and a factory-integrated furrow system to apply in-furrow liquid fertilizer and granular chemical, reducing passes through the field.
Built for Accuracy at Your Speed
Recent field testing shows our industry-leading new Early Riser planter row unit is where speed, precision and performance meet. The unit is high-speed capable while delivering accurate seed placement, net effective stand and harvest data.
Vertical Row Unit Travel
16-inches of vertical row unit travel improves performance in varied terrain while providing greater clearance for residue managers. Cast-iron row unit is built with larger, common hardware and fewer parts.
Down Force Management
Through up-or-down hydraulic pressure, automatic and row-by-row DeltaForce® achieves consistent weight on the gauge wheels for unparalleled depth control. Or select air down force with or without in-cab gauge wheel feedback.
Larger diameter and thicker Earth Metal® offset opener blades are agronomically designed to slice through residue and tough soil conditions.
Floating Residue Management System
CleanSweep® air cylinders allow for in-cab adjustments of residue manager ride to accommodate soil and residue conditions.
Furrow Management System
Pulled gauge wheels with soil relief grooves eliminate sidewall compaction and control soil flow through changing ground speeds. The furrow forming point creates the industry’s only flat-bottom seed trench.
Two-stage Closing System
Inverted closing disks zip the trench closed, placing high-moisture soil directly onto the seed. The press wheel ensures proper seed-to-soil contact.
Precise Per-Row Seed Metering
To achieve the perfect picket fence stand, you need a seed meter capable of delivering accurate and consistent seed singulation, populations and in-row spacing. The all-new seed meter and electric drive at the heart of the new 2000 series Early Riser planter row unit do just that. And it does it at your speed.
vSet® 2 Seed Meter with vDrive® Electric Drive Motor
Row-by-row overlap control and curve compensated spacing deliver optimal seed singulation and spacing. A simple design provides tool-free crop changes and reduces mechanical drive components.
Advanced Seed Delivery (ASD)
For the most accurate seed delivery and placement to and in the trench, the 2000 series ASD option includes the new SpeedTube from Precision Planting. Available for corn and soybeans, the SpeedTube™ uses a flighted belt to control the delivery of the seed from the meter to the furrow, eliminating the drop and tumble variability of traditional gravity drop tubes, especially at high speeds.
Bulk Fill System
Engineered to Deliver
Our 2000 series Early Riser planters are equipped with two 50-bushel hoppers to provide reliable seed delivery from the tank to the mini-hopper – no matter the seed population. Plus, optional 1.9-bushel, on-row individual hoppers also are available.
Reduced Compaction & Better Maneuverability
Extend your planting window with the Rowtrac™ Carrier System. With increased flotation over a wheeled carrier, this carrier system reduces compaction and improves yield potential in wet spring conditions. Plus, it provides better maneuverability and a smoother toolbar ride.
The Rowtrac Carrier System is currently available as a factory-installed option for the 2160 Early Riser planter and will be available for the 2140 Early Riser planter for spring 2019. A conversion kit for the 2140 planter will also be offered for producers who desire to convert their planter to tracks.
Highlights of the steerable Rowtrac Carrier System include:
- Exclusive towed-implement track undercarriage design is pivotable on three major axes for pitch, roll and yaw movement. This system allows the tracks to uniformly minimize ground pressure, even in rolling terrain.
- Transport steering improves maneuverability, especially in tight field entrances.
- One set of track paths controls in-field traffic and reduces pinch row compaction from dual wheels.
- Fore-aft track oscillation provides excellent ground contact and weight distribution on undulating terrain.
- Side camber promotes even wear and extended track life through uneven terrain and roading.

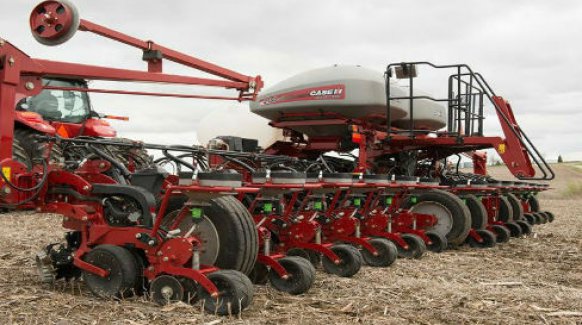

|Make||Case IH Early Riser|
|Model||2150 Front-Fold 16Row 30 (2016-Present)|
|Number of rows||16|
|Row spacings, in (mm)||30 (762)|
|Bulk-Fill or Individual Row Hoppers||Two Bulk-Fill Hoppers|
|Hookup to tractor, Mounted, Semi-mounted, Trailing||Trailing|
|Method of folding for transport||Front Fold|
|Hoppers and/or Tanks|
|Standard hopper capacity, per hopper, bu (L)||Two @ 50 (1762) each|
|Optional hopper arrangement||Row hoppers, not for High Speed|
|Optional hopper capacity, per hopper, bu (L)||1.9 (67)|
|Dry Fertilizer capacity, lb (kg)||No option|
|Liquid Fertilizer capacity, gal (L)||One 400 (1514) opt. w/Bulk Fill; One 600 (2271) opt. w/RH|
|Granular chemical capacity, lb (kg)||Optional AMVAC SmartBox w/in-furrow delivery|
|Metering device, first option||Precision Planting vSet 2 vacuum meter|
|Metering device, second option||Precision Planting vSet 2 w/SpeedTube (ASD)|
|Metering device, third option||No option|
|Furrow-forming device||15" (381) offset discs|
|Seed Delivery, meter to furrow||Gravity drop tube w/sensor|
|Alternate Seed Delivery, meter to furrow||Precision Planting SpeedTube flighted belt (ASD)|
|Depth gauging system||Adjustable T-handle, 1/4" or 1/8" increments|
|Closing system||9" (229) Inverted discs and press wheel|
|Standard down force method||Adjustable air-down, controlled by AFS Pro 700|
|Optional down force method||Precision Planting DeltaForce, hydraulic, row by row|
|Seed and Fertilizer Drives|
|Standard seed drive||Precision Planting vDrive electric motor, each row|
|Optional seed drive||Additional vDrive motor for SpeedTube flighted belt|
|Dry fertilizer drive||No option|
|Liquid fertilizer drive||Centrifugal pump|
|Liquid fertilizer openers||In-furrow optional, ahead of closing discs|
|Dry fertilizer openers||No option|
|Disc furrowers||No option; see Furrow-forming device|
|Residue tine wheels, Row cleaners||Fixed, floating or Precision Planting Clean Sweep air cyl.|
|Coulter only||No option|
|Coulter and residue tine wheels combination||No option|
|First monitor available||AFS Pro 700|
|Second monitor available||No option|
|Number of frame sections||3|
|Frame rigid or flexible||Wing flex, +/- 21 degrees|
|Markers, standard or optional||Optional|
|Rear trailer hitch||Optional|
|Main frame tire size||VF 245/70 R19.5|
|Wing frame tire size||VF 245/70 R19.5|
|Dimensions and Weights|
|Planting width, ft-in, (m)||40' (12.19)|
|Transport width, ft-in (m)||12' 4" (3.76)|
|Transport height, ft-in (m)||11' 5" (3.48)|
|Transport length, ft-in (m)||33' 7" (10.24)|
|Basic weight, empty, lb (kg)||np|
|Weight, empty, with fertilizer tanks, lb (kg)||np|
|Tractor power and hydraulics|
|Power needed, minimum, hp (kW)||180 to 380 (134 to 283)|
|Drawbar/Hitch requirement||Two-point hitch or Drawbar|
|Minimum hydraulic flow, gpm (Lpm)||50 (189)|
|Maximum hydraulic flow, gpm (Lpm)||np|
|PTO driven pump or Power Beyond||22 gpm PTO pump optional|
|Number of remote hydraulic circuits||3 or 4 remote valves and 1 case drain port|
|Secondary Literature Number||PL-3102-16|
|Secondary Literature Date||1/1/2016|
|First Entry Date||12/16/2015|
