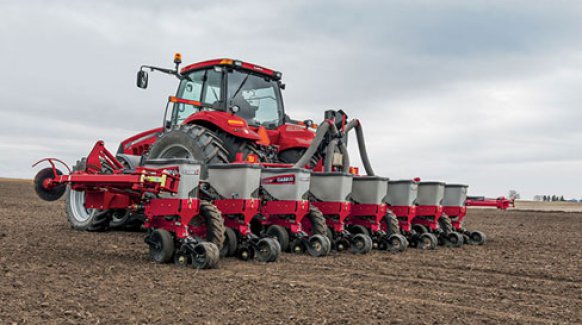

Case IH Products 1235 Mounted Stacker

Double tap to zoom



Features

Maximize Yield Potential
At Case IH, we make every seed count. Through sound agronomic design, Case IH Early Riser Planters set the industry benchmark for consistent in row spacing and plant population accuracy. Now, our latest planters go beyond picket fence stands – uniform spacing between plants – to deliver photocopy plants.​



Uniformity

  • Engineered to deliver uniformity of plants same size, height, and thickness of plants the entire growing season
  • Applies uniform correct soil pressure all around the seed



Accuracy

  • Ensures good seed-to-soil contact
  • Provides accurate and consistent depth control across the planter



Higher Yields
Side-by-side trials show Early Riser Planters produce on average 6% more plants above the competition



Row Unit

Make the Most of Short Seasons
The legendary Case IH Early Riser Planter row unit was designed with agronomics in mind so you can make the most of short planting windows. Our many patented features mean accurate in-row spacing, excellent soil-to-seed contact, and earlier, uniform emergence.



Clean Seed Trench

  • Leading Edge Offset Openers: slice through residue and hard soil.
  • Furrow Forming Point: forms the clean V-shaped seed trench
  • Seed Protection Shoe: acts as a retaining wall, preventing loose soil from falling into the trench before seed.


Careful Soil Handling

  • Reduced Inner Diameter Gauge Wheel Tires: allow displaced soil to move up and out to the sides of the trench for less sidewall compaction.
  • Better Gauge Wheel Weight Distribution: carries the row unit/planter weight away from the edge of the seed trench wall to avoid compression at the base of the trench for more robust roots and plants.
  • Inverted Furrow Closing Disks: replaces soil from both sides so moist soil covers the seed, improving seed-to-soil contact and proper soil pressure.

Specifications

Model 1235 Mounted Stacker 12Row 30 (2014-Present)
Configuration Summary
Number of rows 12
Row spacings, in (mm) 30 (762)
Bulk-Fill or Individual Row Hoppers Row Hoppers
Hookup to tractor, Mounted, Semi-mounted, Trailing Mounted or Semi-mounted
Method of folding for transport Stacker
Hoppers and/or Tanks
Standard hopper capacity, per hopper, bu (L) 1.9 (67)
Optional hopper arrangement No option
Optional hopper capacity, per hopper, bu (L) No option
Dry Fertilizer capacity, lb (kg) No option
Liquid Fertilizer capacity, gal (L) No option
Granular chemical capacity, lb (kg) 70 (32) opt. w/ chain drive only
Row Units
Metering device, first option Vacuum
Metering device, second option No option
Metering device, third option No option
Furrow-forming device 14" staggered discs, 10.5 degree Vee
Seed Delivery, meter to furrow Gravity drop tube
Alternate Seed Delivery, meter to furrow No option
Depth gauging system Single handle, infinite settings
Closing system Inverted discs and press wheel
Standard down force method In-Cab Pneumatic
Optional down force method Spring
Seed and Fertilizer Drives
Standard seed drive AccuDrive cable w/o clutch
Optional seed drive Chain drive, mechanical tranmission
Dry fertilizer drive No option
Liquid fertilizer drive No option
Fertilizer openers
Liquid fertilizer openers No option
Dry fertilizer openers No option
Tillage Attachments
Disc furrowers Smooth or notched
Residue tine wheels, Row cleaners Non-Float tine wheels available
Coulter only 25 wave coulter
Coulter and residue tine wheels combination No option
Planter Monitors
First monitor available AFS Pro 700
Second monitor available Early Riser IV
Frame
Number of frame sections 3
Frame rigid or flexible Flex +/- 8 degrees
Frame Attachments
Markers, standard or optional Optional
Rear trailer hitch No option
Tires
Main frame tire size 7.60-15SL, 10PR, lift assist optional
Wing frame tire size No wing wheels
Dimensions and Weights
Planting width, ft-in, (m) 30' (9.14)
Transport width, ft-in (m) 21' 5" (6.53)
Transport height, ft-in (m) 12' 11" (3.94)
Transport length, ft-in (m) np, mounted
Basic weight, empty, lb (kg) 8,580 (3892)
Weight, empty, with fertilizer tanks, lb (kg) No fertilizer tanks
Tractor power and hydraulics
Power needed, minimum, hp (kW) 200 (149) PTO
Drawbar/Hitch requirement Three-point quick hitch, Category 3 or 4N
Minimum hydraulic flow, gpm (Lpm) 16 (61)
Maximum hydraulic flow, gpm (Lpm) 16 (61)
PTO driven pump or Power Beyond No option
Number of remote hydraulic circuits 2 or 3
Sales Literature
Literature number CIH01031401
Literature date 1/1/2014
Secondary Literature
Secondary Literature Number PL-3082-13
Secondary Literature Date 5/1/2013
Entry Date
Manufacturing Status Current
First Entry Date 12/27/2013
Revision Date 4/25/2014

-

Model 1235 Mounted Stacker 12Row 36W, 38W, 40W (2014-Present)
Configuration Summary
Number of rows 12
Row spacings, in (mm) 36, 38, 40 (914, 965, 1016)
Bulk-Fill or Individual Row Hoppers Row Hoppers
Hookup to tractor, Mounted, Semi-mounted, Trailing Mounted or Semi-mounted
Method of folding for transport Stacker
Hoppers and/or Tanks
Standard hopper capacity, per hopper, bu (L) 1.9 (67)
Optional hopper arrangement No option
Optional hopper capacity, per hopper, bu (L) No option
Dry Fertilizer capacity, lb (kg) No option
Liquid Fertilizer capacity, gal (L) No option
Granular chemical capacity, lb (kg) 70 (32) opt. w/ chain drive only
Row Units
Metering device, first option Vacuum
Metering device, second option No option
Metering device, third option No option
Furrow-forming device 14" staggered discs, 10.5 degree Vee
Seed Delivery, meter to furrow Gravity drop tube
Alternate Seed Delivery, meter to furrow No option
Depth gauging system Single handle, infinite settings
Closing system Inverted discs and press wheel
Standard down force method In-Cab Pneumatic
Optional down force method Spring
Seed and Fertilizer Drives
Standard seed drive AccuDrive cable w/o clutch
Optional seed drive Chain drive, mechanical tranmission
Dry fertilizer drive No option
Liquid fertilizer drive No option
Fertilizer openers
Liquid fertilizer openers No option
Dry fertilizer openers No option
Tillage Attachments
Disc furrowers Smooth or notched
Residue tine wheels, Row cleaners Non-Float tine wheels available
Coulter only 25 wave coulter
Coulter and residue tine wheels combination No option
Planter Monitors
First monitor available AFS Pro 700
Second monitor available Early Riser IV
Frame
Number of frame sections 3
Frame rigid or flexible Flex +/- 8 degrees
Frame Attachments
Markers, standard or optional Optional
Rear trailer hitch No option
Tires
Main frame tire size 7.60-15SL, 10PR, lift assist optional
Wing frame tire size No wing wheels
Dimensions and Weights
Planting width, ft-in, (m) 36' to 40' (10.97 to 12.19)
Transport width, ft-in (m) 26' 4" to 26' 10" (8.03 to 8.18)
Transport height, ft-in (m) 13' (3.96)
Transport length, ft-in (m) np, mounted
Basic weight, empty, lb (kg) 10,400 (4717)
Weight, empty, with fertilizer tanks, lb (kg) No fertilizer tanks
Tractor power and hydraulics
Power needed, minimum, hp (kW) 205 (153) PTO
Drawbar/Hitch requirement Three-point quick hitch, Category 3 or 4N
Minimum hydraulic flow, gpm (Lpm) 16 (61)
Maximum hydraulic flow, gpm (Lpm) 16 (61)
PTO driven pump or Power Beyond No option
Number of remote hydraulic circuits 2 or 3
Sales Literature
Literature number CIH01031401
Literature date 1/1/2014
Secondary Literature
Secondary Literature Number PL-3082-13
Secondary Literature Date 5/1/2013
Entry Date
Manufacturing Status Current
First Entry Date 12/27/2013
Revision Date 4/25/2014

-

Model 1235 Mounted Stacker 16Row 30 (2014-Present)
Configuration Summary
Number of rows 16
Row spacings, in (mm) 30 (762)
Bulk-Fill or Individual Row Hoppers Row Hoppers
Hookup to tractor, Mounted, Semi-mounted, Trailing Semi-mounted, w/ lift assist wheels
Method of folding for transport Stacker
Hoppers and/or Tanks
Standard hopper capacity, per hopper, bu (L) 1.9 (67)
Optional hopper arrangement No option
Optional hopper capacity, per hopper, bu (L) No option
Dry Fertilizer capacity, lb (kg) No option
Liquid Fertilizer capacity, gal (L) No option
Granular chemical capacity, lb (kg) 70 (32) opt. w/ chain drive only
Row Units
Metering device, first option Vacuum
Metering device, second option No option
Metering device, third option No option
Furrow-forming device 14" staggered discs, 10.5 degree Vee
Seed Delivery, meter to furrow Gravity drop tube
Alternate Seed Delivery, meter to furrow No option
Depth gauging system Single handle, infinite settings
Closing system Inverted discs and press wheel
Standard down force method In-Cab Pneumatic
Optional down force method Spring
Seed and Fertilizer Drives
Standard seed drive AccuDrive cable w/ AccuRow clutch
Optional seed drive Chain drive, mechanical tranmission
Dry fertilizer drive No option
Liquid fertilizer drive No option
Fertilizer openers
Liquid fertilizer openers No option
Dry fertilizer openers No option
Tillage Attachments
Disc furrowers Smooth or notched
Residue tine wheels, Row cleaners Non-Float tine wheels available
Coulter only 25 wave coulter
Coulter and residue tine wheels combination No option
Planter Monitors
First monitor available AFS Pro 700
Second monitor available Early Riser IV
Frame
Number of frame sections 3
Frame rigid or flexible Flex +/- 8 degrees
Frame Attachments
Markers, standard or optional Optional
Rear trailer hitch No option
Tires
Main frame tire size 7.60-15SL, 10PR, lift assist standard
Wing frame tire size No wing wheels
Dimensions and Weights
Planting width, ft-in, (m) 40' (12.19)
Transport width, ft-in (m) 26' 10" (8.18)
Transport height, ft-in (m) 13' (3.96)
Transport length, ft-in (m) np, mounted
Basic weight, empty, lb (kg) 12,000 (5443)
Weight, empty, with fertilizer tanks, lb (kg) No fertilizer tanks
Tractor power and hydraulics
Power needed, minimum, hp (kW) 185 (138) PTO
Drawbar/Hitch requirement Three-point quick hitch, Category 3 or 4N
Minimum hydraulic flow, gpm (Lpm) 16 (61)
Maximum hydraulic flow, gpm (Lpm) 16 (61)
PTO driven pump or Power Beyond No option
Number of remote hydraulic circuits 3
Sales Literature
Literature number CIH01031401
Literature date 1/1/2014
Secondary Literature
Secondary Literature Number PL-3082-13
Secondary Literature Date 5/1/2013
Entry Date
Manufacturing Status Current
First Entry Date 12/27/2013
Revision Date 4/25/2014

-

Model 1235 Mounted Stacker 8Row 38W, 40W (2014-Present)
Configuration Summary
Number of rows 8
Row spacings, in (mm) 38 or 40 (965 or 1016)
Bulk-Fill or Individual Row Hoppers Row Hoppers
Hookup to tractor, Mounted, Semi-mounted, Trailing Mounted
Method of folding for transport Stacker
Hoppers and/or Tanks
Standard hopper capacity, per hopper, bu (L) 1.9 (67)
Optional hopper arrangement No option
Optional hopper capacity, per hopper, bu (L) No option
Dry Fertilizer capacity, lb (kg) No option
Liquid Fertilizer capacity, gal (L) No option
Granular chemical capacity, lb (kg) 70 (32) opt. w/ chain drive only
Row Units
Metering device, first option Vacuum
Metering device, second option No option
Metering device, third option No option
Furrow-forming device 14" staggered discs, 10.5 degree Vee
Seed Delivery, meter to furrow Gravity drop tube
Alternate Seed Delivery, meter to furrow No option
Depth gauging system Single handle, infinite settings
Closing system Inverted discs and press wheel
Standard down force method Spring
Optional down force method No option
Seed and Fertilizer Drives
Standard seed drive Chain drive, mechanical tranmission
Optional seed drive AccuDrive cable w/ or w/o AccuRow clutch
Dry fertilizer drive No option
Liquid fertilizer drive No option
Fertilizer openers
Liquid fertilizer openers No option
Dry fertilizer openers No option
Tillage Attachments
Disc furrowers Smooth or notched
Residue tine wheels, Row cleaners Non-Float tine wheels available
Coulter only 25 wave coulter
Coulter and residue tine wheels combination No option
Planter Monitors
First monitor available Early Riser IV
Second monitor available AFS Pro 700
Frame
Number of frame sections 3
Frame rigid or flexible Flex +/- 8 degrees
Frame Attachments
Markers, standard or optional Optional
Rear trailer hitch No option
Tires
Main frame tire size No main frame tires
Wing frame tire size No wing wheels
Dimensions and Weights
Planting width, ft-in, (m) 25' 4" or 26' 8" (7.72 or 8.13)
Transport width, ft-in (m) 19' 4" (5.89)
Transport height, ft-in (m) 11' 11" (3.63)
Transport length, ft-in (m) np, mounted
Basic weight, empty, lb (kg) 7,400 (3357)
Weight, empty, with fertilizer tanks, lb (kg) No fertilizer tanks
Tractor power and hydraulics
Power needed, minimum, hp (kW) 150 (112) PTO
Drawbar/Hitch requirement Three-point quick hitch, Category 3 or 4N
Minimum hydraulic flow, gpm (Lpm) 16 (61)
Maximum hydraulic flow, gpm (Lpm) 16 (61)
PTO driven pump or Power Beyond No option
Number of remote hydraulic circuits 2 or 3
Sales Literature
Literature number CIH01031401
Literature date 1/1/2014
Secondary Literature
Secondary Literature Number PL-3082-13
Secondary Literature Date 5/1/2013
Entry Date
Manufacturing Status Current
First Entry Date 12/27/2013
Revision Date 4/25/2014
