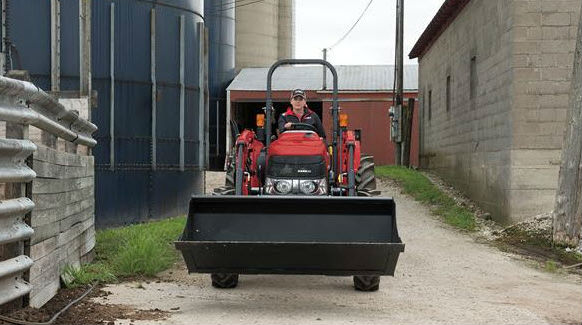

Key Features of the L505 Series Loaders
KEY FEATURES INCLUDE:
- Double C channel loader arm for structural strength and streamlined appearance.

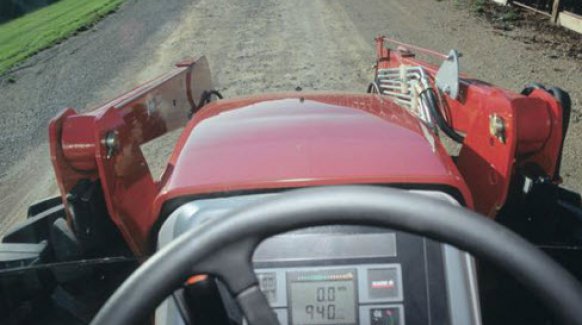

- Reinforcements between the cross tube and loader arm for improved visibility and longer service life.
- Integrated Park Stands for quick connect and disconnect.
- Pin lock system for lubrication, strength in wear areas and protection from contaminants.
- Sub frame strength with large bearing surface for longer loader life.
- Quick Connect System for improved efficiency.
- Compact bucket level indicator for ease of monitoring bucket position and recued chance for damage.
Lift Capacity Max Height @ Pivot Pins: 1,782 lb (810 kg)
Boom Breakout Force @ Pivot Pins: 4,730 lb (21.1 kg)
Bucket Rollback Force @ Max Height: 3,058 lb (13.6 kg)
