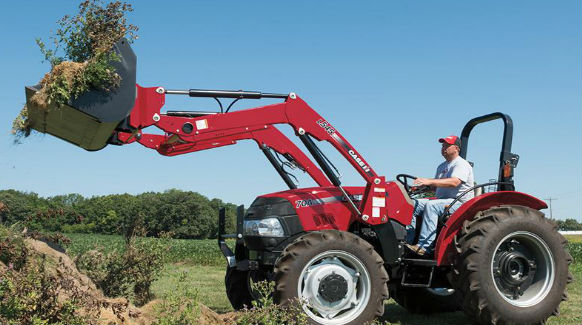

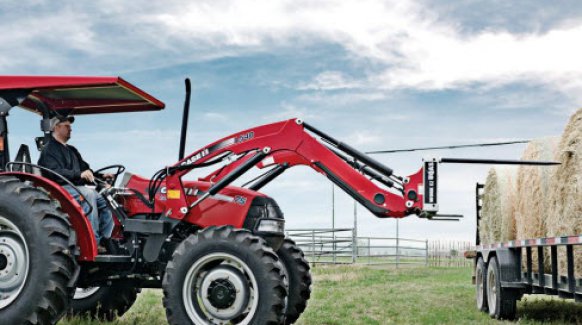

Key Features of the L505 Series Loaders
KEY FEATURES INCLUDE:
- Double C channel loader arm for structural strength and streamlined appearance.
- Reinforcements between the cross tube and loader arm for improved visibility and longer service life.
- Integrated Park Stands for quick connect and disconnect.
- Pin lock system for lubrication, strength in wear areas and protection from contaminants.
- Sub frame strength with large bearing surface for longer loader life.
- Quick Connect System for improved efficiency.
- Compact bucket level indicator for ease of monitoring bucket position and recued chance for damage.
Max Lift Capacity: 1,250 lbs (568 kg)
Max Height: 98.4 in (2.49 m)
Breakout Force: 2,799 lbs(1,225 kg)
