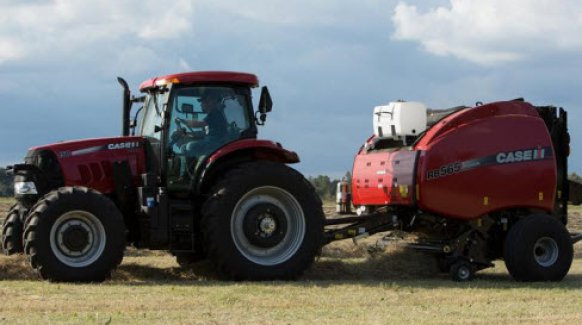

Case IH Products RB565 Premium Round Baler

Double tap to zoom



Features

Five-Bar Pickup
A heavy-duty five-bar pickup combined with the roller windguard gives the RB565 Premium and wide pickup balers added durability and performance. The pickup reel has a total of 160 curved steel tines with a rubber base and is more than 6.5 feet (2 meters) in length from outside to inside tine.​

New Overshot Feeding System
One of the defining features of the new RB565 round baler is an overshot feeding system that provides more aggressive feeding into the bale chamber. A series of 20 tines on the feeder move crop from the outside of the pickup to the center, which results in a more consistent crop mat and less crop hesitation.​

Heavy-Duty Pickup Reel
The newly designed pickup reel is built for tough conditions: a two-piece bar design with five solid tine bars and no joint at reel spider keeps you rolling longer and with fewer repairs. Stronger tines last five times longer in field tests, and full-height pickup dividers keep tines aligned and reduce the possibility of damage, even in corn stalks.​

Pickup Gauge and Gathering Wheels
Another innovation that improves pickup, particularly in dry, light crops, is the pickup-mounted gathering wheels. The tines of these wheels gather the edges of the windrows and ensure the maximum amount of crop is picked up. For pickup flotation, new quick-adjust castering gauge wheels better follow contours and lessen the need for the operator to raise the pickup on sharp turns. ​

Specifications

Make Case IH
Model RB565
Bale Size
Bale diameter, in (mm) 36 to 72 (914 to 1829)
Bale width, in (mm) 61.5 (1562)
Bale weight, lb (kg) 500 to 2,500 (227 to 1134)
Bale Forming
Bale chamber, Fixed or Variable Variable chamber
Forming mechanism, Belts, Rolls, Chain & slats 5 rolls and 8 belts
Belt width, in (mm) 7 (178)
Belt description Premium Laced std; Endless opt.
Tensioning method Springs and two hydraulic cylinders
Cutter, Chopper, Slicer
Cutter-chopper available Optional
Bale ejector
Bale ejector description Bale ramp spring loaded; hydraulic opt.
Twine and Wrap Systems
Twine ball storage, quantity 6 or 8 active, plus up to 4 spare
Twine system control Automatic, electric
Netwrap, meshwrap feature Netwrap available
Standard Pickup
Pickup working width, in (mm) 68 (1730) flare-to-flare
Outer tine-to-tine width, standard, in (mm) 60 (1524)
Tine spacing, in (mm) 2.63 (67)
Number of tine bars or tine rows 6
Number of tines 144
Windguard description Articulated tine std; roller opt.
Pickup gauge wheel Two std; two castor type opt.
Pickup lift, manual or hydraulic Manual or hydraulic
Optional Pickup
Optional pickup working width, in (mm) 90 (2284) flare-to-flare
Outer tine-to-tine width, optional, in (mm) 81.5 (2070)
Tires
Standard Tire size 31x13.5-15, 10PR
Optional Tire size 18Lx16.1SL or 21.5x16.1, 10 PR
Baler Dimensions and Weight
Overall length, gate closed, in (mm) 188.6 (4790)
Overall baler width, in (mm) 128.5 (3263)
Overall height, gate closed, in (mm) 122.2 (3103)
Weight, lbs (kg) 7,450 (3379)
PTO Drive
PTO speed, rpm 540 or 1000
Drive protection Cut-out clutch
Tractor Requirements
Tractor power, hp (kW) 80 (60)
Number of hydraulic remote circuits 1 or 2
Sales Literature
Literature number --
Literature date --
Manual
Manual Number HF-5150-13
Manual Date 7/1/2013
Entry Date
Manufacturing Status Current
First Entry Date 8/1/2013
Revision Date 9/1/2013
