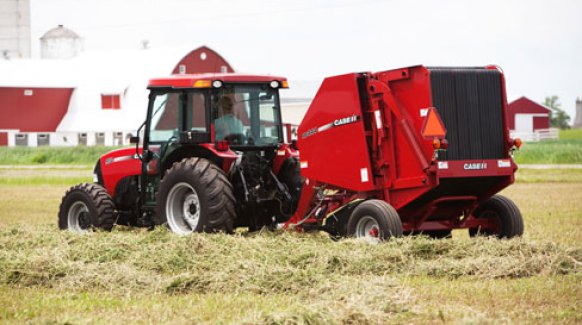

Case IH Products RB444 Round Baler

Double tap to zoom



Features

  • Customized bales ​​​— easily adjust bale density and diameter
  • Electric single-arm twine system ties bales fast, applying two strands at once
  • Forward location of pickup allows you to see windrows feeding into the bale chamber
  • Pickup features 72 tines —​ more tines grab more hay
  • Durable belts and rolls form dense, uniform bales​​

Specifications

Make Case IH
Model RB444
Bale Size
Bale diameter, in (mm) 30 - 48 (762 - 1220)
Bale width, in (mm) 46.5 (1182)
Bale weight, lb (kg) 300 - 750 (136 - 340)
Bale Forming
Bale chamber, Fixed or Variable Variable chamber
Forming mechanism, Belts, Rolls, Chain & slats 5 rolls and 6 belts
Belt width, in (mm) 7 (178)
Belt description 3-ply laced, chevron
Tensioning method 2 extension spring assemblies
Cutter, Chopper, Slicer
Cutter-chopper available None
Bale ejector
Bale ejector description None
Twine and Wrap Systems
Twine ball storage, quantity 4
Twine system control Electric, manual
Netwrap, meshwrap feature No option
Standard Pickup
Pickup working width, in (mm) 60 (1524)
Outer tine-to-tine width, standard, in (mm) 44.6 (1133)
Tine spacing, in (mm) 2.63 (67)
Number of tine bars or tine rows 4
Number of tines 72
Windguard description 9 rods, adjustable
Pickup gauge wheel 1 Standard; 2 Optional
Pickup lift, manual or hydraulic Manual
Optional Pickup
Optional pickup working width, in (mm) No option
Outer tine-to-tine width, optional, in (mm) No option
Tires
Standard Tire size 11L x 14, 6 ply
Optional Tire size No option
Baler Dimensions and Weight
Overall length, gate closed, in (mm) 135 (3429)
Overall baler width, in (mm) 85 (2160)
Overall height, gate closed, in (mm) 85 (2160)
Weight, lbs (kg) 2,950 (1338)
PTO Drive
PTO speed, rpm 540
Drive protection Shear bolt
Tractor Requirements
Tractor power, hp (kW) 40 (30) PTO
Number of hydraulic remote circuits 1
Sales Literature
Literature number CIH11130803
Literature date 11/1/2008
Manual
Manual Number HF-5114-09
Manual Date 5/1/2009
Entry Date
Manufacturing Status Current
First Entry Date 9/1/2007
Revision Date 1/1/2012
