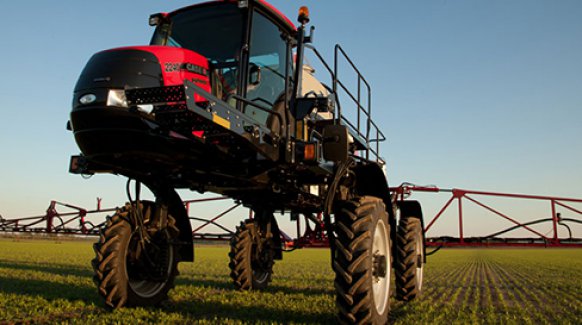

Case IH Products Patriot 3330 (Prior Model)

Double tap to zoom



Features

SPRAY WHEN YOU HAVE TO

  • The cab-forward, rear-engine design provides:
    • More equal weight distribution across the machine
    • Gets you into wet fields earlier for more timely application with less rutting and soil compaction
  • Optional 360-degree HID lighting adds hours to your day
  • Optimum use of efficient horsepower means you can cover more acres faster



LONG HOURS WON'T FEEL SO LONG

  • Surveyor cab offers:
    • Exceptional space to work in and allows the operators to stretch out their legs
    • Vast amounts of cab glass and a well-thought-out cab design offer unrestricted visibility to the front and sides
      • Helps when traveling down the field or maneuvering around obstacles
    • A gun sight on the front hood that helps you line up your pathway
    • A seat-mounted control console moves with the seat for near-effortless operation of sprayer controls
    • The AFS Pro 700 color display can be mounted on the control console or on a separate mounting bar
      • Allows for line-of-sight visibility of rate control and guidance functions



SPRAY BETTER

    • AFS AccuGuide automated guidance helps reduce skips and overlaps
    • AutoBoom automatic boom height control maintains optimum spray height for better coverage
    • AIM Command and AIM Command ProTM pulse width modulation technology helps operators maintain a constant application volume while adjusting spray pressure to manipulate droplet size; use a single tip for multiple applications

MAXIMIZE YOUR UPTIME

  • Maintenance is simple
    • Routine maintenance items are located on one side of the machine and easily accessed
    • Saves time, so maintenance is less likely getting skipped when things get busy
    • Our booms are designed for maximum strength, unequaled durability and unmatched reliability
  • The very first Patriot we ever built is still up and running because of its welded one-piece tubular frame design and the simple but durable trailing-link suspension

Specifications

Make Case IH
Model Patriot 3330
Solution System
Solution system tank, gal (L) 1,000 (3785)
Solution tank material Stainless steel
Solution system quick-fill, in (mm) 3 (76) Left side; Front opt.
Solution pump Centrifugal-hydraulic motor driven
Other Tanks and Containers
Rinse tank, gal (L) 112 (424)
Hand wash tank, gal (L) Hand rinse valve
Foam marker tank, gal (L) 55 (208)
Chemical eductor Optional, stainless steel
Engine fuel tank, gal (L) 120 (454)
Diesel Exhaust Fluid (DEF) tank, gal (L) No
Hydraulic reservoir, gal (L) 29 (110)
Dry material box option in place of tank No
Boom
Boom location, front or rear Rear
Boom width option, minimum, ft (m) 60 / 90 (18.3 / 27.4)
Boom width option, intermediate, ft (m) 60 / 100 (18.3 / 30.5)
Boom width option, maximum, ft (m) 60 / 90 / 120 (18.3 / 27.4 / 36.5)
Boom sections 5 or 6 w/90; 6 w/100; 7 w/120
Ground height adjustment, in (cm) 19 to 84 (48 to 213)
Boom breakaway angle, degrees 30 full boom
Wingtip breakaway, ft-in (m) 5' 6" (1.7) / 10' 6" (3.2) / 9' 0" (2.7)
Off-center nozzle spacing, in (cm) 20 (50.8) or 20 to 30 (50.8 to 76.2)
On-center nozzle spacing, in (cm) 30 (76.2)
Engine
Engine position (front or rear) Rear
Engine Make Case IH FPT
Engine Model NEF 6.7 L
Rated power, hp (kW) 250 (186)
Peak power, hp (kW) 270 (202)
Emission Tier Level Tier 3
Peak Torque, ft-lb (N-m) 789 (1070)
Number of cylinders 6
Displacement, cu in (L) 411 (6.73)
Alternator Amps 175 Amp
Drive Train
Drive System description Hydrostatic
Number of speed ranges Infinitely variable
Maximum travel speed, mph (kph) 30 (48)
Wheel drive (2WD, 4WD) Full-time 4WD
Primary Service Brake Drive system dynamic braking
Secondary Service Brake Dry disks on front wheels
Parking Brake Spring-apply hydraulic wet disc, all wheels
Cab
Cab position Forward of front wheels
Cab glass area, sq ft (sq m) 68.5 (6.36)
Operator seat description Optima Air w/ swivel
Instructional seat Standard
Sprayer control SCS 5000; AFS Pro 700 or Viper Pro
Chassis
Crop clearance, in (cm) w/ std tires 52 (132)
Wheel track spacing, in (cm) 120 to 157 (305 to 399)
Wheel track adjustment method Hydraulic, from cab
Wheelbase, in (cm) 150 (381)
Turning radius, ft-in (m) 23' 3" (7.1) from center of rear axle
Steering system 2WS, Hydraulic
Suspension description Trailing link w/spring & shock std; Active susp. opt.
Suspension travel, total, in (mm) Approx. 11 (278)
Tires
Standard row-crop tire 380/90 R46
Optional row-crop tire 1 320/90 R46
Optional row-crop tire 2 Goodyear or Michelin
Flotation tire 520/85 R38
Optional flotation tire 650/65 R38
Overall dimensions, boom folded
Overall Length, ft-in (m) 27' 9" (8.46)
Overall Height, ft-in (m) 12' 0" (3.67)
Overall Width, ft-in (m), wheels retracted 11' 6" (3.51)
Overall Width, ft-in (m), wheels extended 14' 7" (4.45)
Dry Weight
Weight w/ shortest boom, lb (kg) 24,500 (11113)
Weight w/ intermediate boom, lb (kg) 24,500 (11113)
Weight w/ widest boom, lb (kg) 25,400 (11521)
Sales Literature
Literature Number CIH10281101
Literature Date 10/01/2011
Manual
Manual Number 84233432
Manual Date 06/01/2009
Entry Date
Manufacturing status Current
First Entry Date 12/01/2009
Revision Date 06/01/2012
