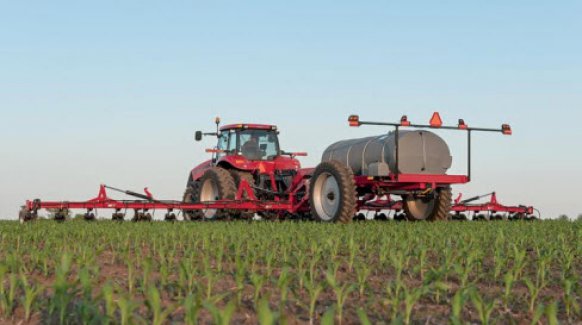

Case IH Products Nutri-Placer 920

Double tap to zoom



Features

Maximum Productivity Professional Grade
Nutri-Placer® pull-type fertilizer applicators are designed to improve the productivity of every pass. With durability, flexibility and reliability that has been proven on millions of acres and a variety of field conditions, the Nutri-Placer family will fit nearly any soil type. Built to the standard of both professional producers and commercial applications, you can count on the Nutri-Placer for precise nutrient management.

Nutri-Placer 940 New High-speed Low Disturbance Coulter Option
Capable of speeds up to 11 mph, Nutri-Placer 930 and Nutri-Placer 940 models are now available with a High-speed Low Disturbance (HSLD) Row Unit. This new option allows you to cover more than 900 acres in a 12-hour day. And this increased productivity is matched with superior agronomic performance. In extensive field testing, the HSLD Row Unit provided better residue cover and a more level surface finish than other coulter-style applicators available. Spring or fall, producers and professional applicators can count on the Nutri-Placer HSLD coulter to make the most of every acre, every application.

Where Productivity Meets Performance

  • The Nutri-Placer 930 HSLD places nutrients up to 6 inches deep in the root zone — when and where crops need it most.
  • New 22.6-inch single coulter cuts through residue with minimal soil disturbance for improved nutrient retention.
  • Industry’s highest speed capability provides increased acres per hour, lower tractor hours and reduced fuel consumption.
  • Cast-iron components and reduced maintenance keep you in the field during fall, preplant and side-dress applications.



Create the Perfect Field Finish

  • Cuts through heavy residue without plugging — even at high speeds and in tough, fast-changing conditions.
  • In Case IH field testing, the Nutri-Placer 930 HSLD provided better residue cover, significantly fewer clods and reduced lateral soil movement compared with competitive coulter-style applicators.
  • Uniform surface finish preserves valuable ground cover in highly erodible land and heavy, no-till corn conditions.
  • Improves soil and moisture retention to reduce run-off and maximize crop uptake.



Create the Perfect Field Finish

  • Cuts through heavy residue without plugging — even at high speeds and in tough, fast-changing conditions.
  • In Case IH field testing, the Nutri-Placer 930 HSLD provided better residue cover, significantly fewer clods and reduced lateral soil movement compared with competitive coulter-style applicators.
  • Uniform surface finish preserves valuable ground cover in highly erodible land and heavy, no-till corn conditions.
  • Improves soil and moisture retention to reduce run-off and maximize crop uptake.



An Enhanced Row Unit

  • 22.6-inch single coulter cuts through residue with minimal soil disturbance up to 11 mph. A 4-degree blade angle opens a precise slot for accurate nutrient placement.
  • Spring loaded, cast-iron knife features carbide inserts for extended wear and protection of fertilizer tubes. A rear Beaver Tail attachment with tungsten carbide weld ensures optimal fertilizer placement.
  • Wiper wheel holds soil in place while the coulter opens a slot. It also eliminates soil and residue buildup between the wiper and coulter blade.
  • Closing system features a SharkTooth® blade and walking tandem press wheel to firm the soil. No-tools required spring down pressure and pivot range adjustments make changes quick and easy.



Row Unit Options
The ground-engaging components on the Nutri-Placer fertilizer applicator help you more precisely place nutrients. Choose from three row unit options, including the new High-Speed Low Disturbance (HSLD) coulter.

High-clearance™ Shank

  • High-clearance Shank (HCS) mount available on the 930 and 940 models
  • Built with auto-reset design with adjustable down pressure to either 850 or 1,250 pounds
  • Equipped with 1¼-by-2-inch edge-bent shank
  • High, under-frame clearance allows for residue flow



Heavy-duty Spring Shank Option

  • Available on the 930 and 940 models
  • Spring loaded 1-inch-by-2-inch shank with 850 pounds of trip force
  • Economical option that delivers effective nutrient placement while offering shank protection



High-speed Low Disturbance

  • Single-disk coulter cuts through residue with minimal soil disturbance • 4-degree blade angle opens a precise slot for accurate nutrient placement • Right and left coulter positioning delivers accuracy down to each individual row • Only available on 930 and 940 models



ROBUST FRAME

Dependable Features to Boost Productivity
From the rugged frame to easy folding for transport, the Nutri-Placer was built to cover a lot of acres in a day. It delivers durability you can count on season after season.

Main Frame and Wing Design

  • Commercial quality, robust frame
  • 3- or 5-section flex wings follow the ground contour
  • LED lighting provides bright, reliable and safe transport



Single-point and Hydraulic Depth Control

  • Adjust depth quickly and easily across a variety of field conditions
  • System maintains equal depth across the implement
  • Weighted handle eliminates unwanted adjustments



Transport

  • Single-, double- or triple-fold transport modes
  • Large wing fold cylinders
  • Standard radial tires for main transport
  • LED lighting provides reliability and safety



Wheels and Axles

  • Easy-leveling turnbuckles for wing wheel adjustments on double-fold units
  • Heavy Duty Spring Shank or High Clearance Shank tires
  • Standard Bias Ply FI tires on all sections
  • Optional radial tires for main transport and wing wheels
  • HSLD
  • Standard radial tires for main transport and wing wheels
  • Durable axle design keeps you running field after field

Specifications

Make Case IH
Model Nutri-Placer 920, 1,650 Gallon
Configuration Summary
Ground engagement, Strip-Till or other High pressure injector or liquid knife behind coulter
Fertilizer material: Dry, Liquid, or Anhydrous Liquid only
Working width, ft-in (m) 42' 6" to 62' 6" (13.0 to 19.1)
Number of rows 17, 23 or 25 coulters
Row spacings, in (mm) 30 (762)
Hookup to tractor, Mounted or Pull-type Pull-type
Method of folding for transport Hydraulic X-fold
Liquid fertilizer tank capacity, gal (L) 1,650 (6246)
Ground Engagement
Coulter diameter, in (mm) 20 (508) rippled
Residue tine wheels, Row cleaners No option
Shanks/knives High pressure injector or liquid knife behind coulter
Shank trip force, lb (kg) No shank
Operating depth, in (mm) Injector above ground; knife in coulter slot
Sealing discs, closing discs, berm builder, in (mm) No option
Conditioning basket, in (mm) No option
Toolbar and Frame
Toolbar rigid or flexible Flex, unlimited up, -7 deg. down
Depth adjustment np
Rear trailer hitch No
Tires
Main frame tire size 420/80 R46 std; 380/90 R46 opt.
Wing frame tire size 20.5x8
Dimensions and Weights
Transport width, ft-in (m) 16' 8" (5.1)
Transport height, ft-in (m) 13' 4" (4.1)
Basic weight, lb (kg) 14,830 (6727)
Tractor power and hydraulics
Power needed, hp (kW) 200 (149) or higher
Drawbar/Hitch description Drawbar category 4
Number of remote hydraulic circuits 4
Sales Literature
Literature number CIH08111401
Literature date 8/1/2011
Other Documentation
Document Number NP-15006-14
Document Date 6/1/2014
Status and Dates
Manufacturing Status Current
First Entry Date 4/27/2015
Revision Date --

-

Model Nutri-Placer 920, 2,050 Gallon
Configuration Summary
Ground engagement, Strip-Till or other High pressure injector or liquid knife behind coulter
Fertilizer material: Dry, Liquid, or Anhydrous Liquid only
Working width, ft-in (m) 42' 6" to 62' 6" (13.0 to 19.1)
Number of rows 17, 23 or 25 coulters
Row spacings, in (mm) 30 (762)
Hookup to tractor, Mounted or Pull-type Pull-type
Method of folding for transport Hydraulic X-fold
Liquid fertilizer tank capacity, gal (L) 2,050 (7760)
Ground Engagement
Coulter diameter, in (mm) 20 (508) rippled
Residue tine wheels, Row cleaners No option
Shanks/knives High pressure injector or liquid knife behind coulter
Shank trip force, lb (kg) No shank
Operating depth, in (mm) Injector above ground; knife in coulter slot
Sealing discs, closing discs, berm builder, in (mm) No option
Conditioning basket, in (mm) No option
Toolbar and Frame
Toolbar rigid or flexible Flex, unlimited up, -7 deg. down
Depth adjustment np
Rear trailer hitch No
Tires
Main frame tire size 380/90 R46 duals std; 420/80 R46 single opt.
Wing frame tire size 20.5x8
Dimensions and Weights
Transport width, ft-in (m) 16' 8" (5.1)
Transport height, ft-in (m) 13' 4" (4.1)
Basic weight, lb (kg) 16,930 (7679
Tractor power and hydraulics
Power needed, hp (kW) 200 (149) or higher
Drawbar/Hitch description Drawbar category 4
Number of remote hydraulic circuits 4
Sales Literature
Literature number CIH08111401
Literature date 8/1/2011
Other Documentation
Document Number NP-15006-14
Document Date 6/1/2014
Status and Dates
Manufacturing Status Current
First Entry Date 4/27/2015
Revision Date --
